Item no.

Engine model

Product Description


CY-ISZ105

2189CC 4-4CYL. HOMBRE  1996-2000
HOMBRE 2.2L L4 134 CID VIN 4 1996-2003

ISUZU TIMING CHAIN KIT

1-CHAIN  C-370
2-GEAR  ( CAM ) S-774
3-GEAR  ( CRANK )  S-549
4-GUIDE  ( DAMPER )  9115

CY-ISZ116

CORSA 1.5 15D 1993-1996
CORSA 1.5 15TD 1993-1999
CORSA MK II 1.7DI Y17DTL 4EE1 1686CC 2000-2006
CORSA MK II 1.7DTI Y17DT 4EE1 1686CC 2000-2006

ISUZU TIMING CHAIN KIT

1-BELT
2-TENSIONER
3-IDLER-LH

CY-ISZ120

RODEO 2.2L DOHC 2000-2003
AMIGO 2.2L DOHC 2000

ISUZU TIMING CHAIN KIT

1-BELT 169S8M24
2-TENSIONER
3-IDLER

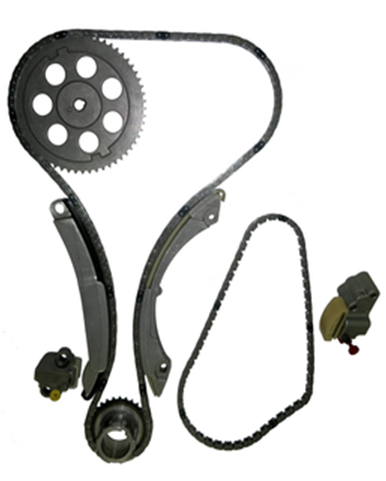

CY-ISZ121

RODEO 2.2L DOHC 2000-2003
AMIGO 2.2L DOHC 2000

ISUZU TIMING CHAIN KIT

1-CHAIN C-195 168L
2-CRANK GEAR S-913 29T
3-CAM GEAR S-908 58T
4-TENSIONER 9-5512
5-GUIDE 9-5504
6-GUIDE 9-5506
7-BAL. SHF. CHAIN C-728F 110L
8-BAL. SHF. TENSIONER 9-5511

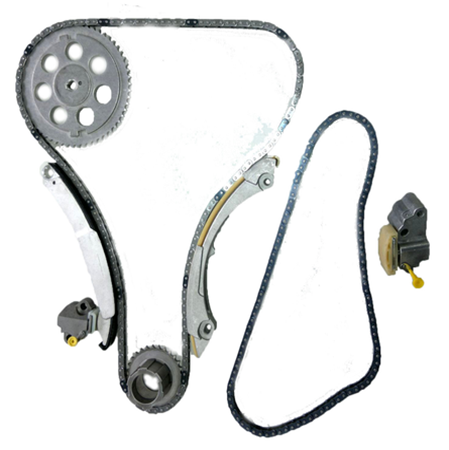

CY-ISZ122

I-290 2.9L L4 2921CC 178 CID, 3.7L L5 3654CC 223 CID , 2007-2008

ISUZU TIMING CHAIN KIT

1-CHAIN C195 168L
2-Bal. Shf. Chain 110L C728F
3-CAM GEAR 58T S908
4-CRANK GEAR 29T S913
5-TENSIONER 9-5512
6-GUIDE (L.H.) 9-5510
7-GUIDE SHOE (R.H.) 9-5504
8-Bal. Shf. Tensioner 9-5511

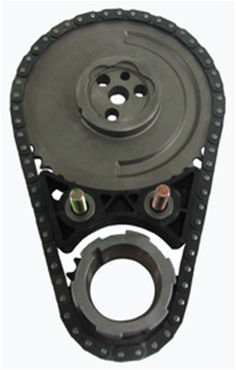

CY-ISZ123

ASCENDER 5.3L V8 323 CID 2003-2005, 325 CID VIN C 2006

ISUZU TIMING CHAIN KIT

1-CHAIN 3SR-60
2-GEAR CAM S-878
3-CRANK GEAR S-827
4-DAMPER 9617

CY-ISZ124

3.2-W(3165CC) DOHC V6 (6VD2 Engine) Amigo, Rodeo 1998-2004

ISUZU TIMING CHAIN KIT

1-BELT TB-303 191
2-TENSIONER 9-5449
3-IDLER-RH
4-IDLER-LH

CY-ISZ125

D-Max 8DH 2.5 DiTD 2006.10-2016.12
D-Max 8DH 2.5 DiTD 4x4 2007.01-2016.12
D-Max 8DH 3.0 DiTD 2007.01-2016.12
D-Max 8DH 3.0 DiTD 4x4 2007.01-2016.12
D-Max TFR/TFS 2.5 Ddi 2012.06-2016.12
D-Max TFR/TFS 2.5 Ddi 4WD 2012.06-2016.12

ISUZU TIMING CHAIN KIT

1-TIMING CHAIN
2-CAM SPROCKET
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X2PCS
