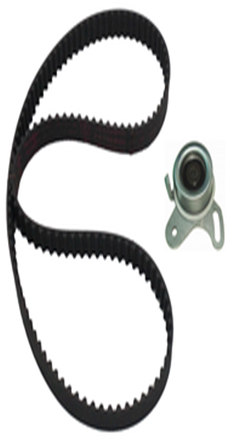

| CY-HYD001 |
CRDI ACCENT 2006-
1.5 SOHC 4CYL. ACCENT GL, L 1995-2003 |
1-TIMING BELT 110S8M22
2-TENSIONER 9224 |
 |
| CY-HYD002-SA |
D4FA GETZ/MATRIX/LAVITA DOHC 16V 1.5L 2001-
ERA DIESEL MATRIX CRDI 1.5 2001-
GETZ CRDI 1.5 2003- KIA RIO II SALOON CRDI 1.5 2005-
KIA PICANTO CRDI 1.1 2005- KIA VENGA CRDI 1.4 2010-
120 VERNA D4FC D4FB G4LA G4FC G4FA 2009-2012 |
1-CHAIN 06Dx84L
2-CHAIN 06Dx76L
3-CAM GEAR
4-CRANK GEAR (2PCS)
5-CRANK UP GEAR
6-TENSIONER
7-TENSIONER
8-GUIDE
9-GUIDE
10-GUIDE
11-GUIDE |
 |

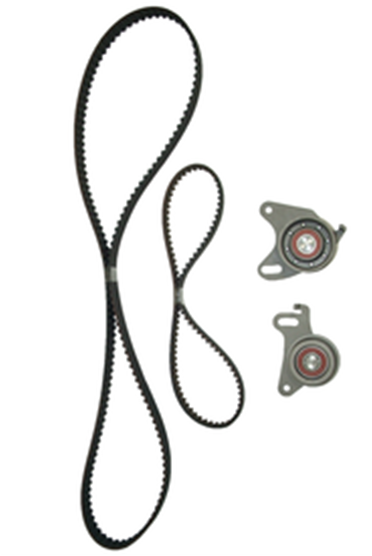

| CY-HYD004 |
GALLOPER II (JK-01)1998-2008
HYDUNDAIH-1 Box 2000-2003
HYDUNDAIH-1 Bus 1997-2010
STAREX (H1) 1997-2006
HYDUNDAIH100 Bus (P)1993-2007
HYDUNDAI D4BB
HYDUNDAI D4BF
HYDUNDAI D4BH |
1-BELT 163RU25
2-BELT 99YU19
3-TENSIONER 9107
4-TENSIONER-BAL SHAFT 9108 |
 |

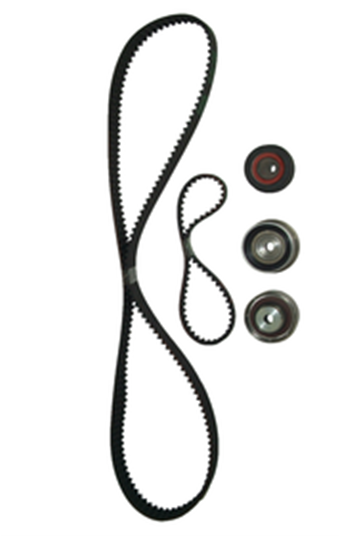

| CY-HYD005 |
KIA OPTIMA 2.4 G4JS 2001-2006
HYDUNDAI SANTA FE 2.4 G4JS 2001-2003
HYDUNDAI SONATA 2.4 G4JS 1999-2005 |
1-BELT 175S8M29
2-BELT 65S8M12.7
3-ROLLER
4-TENSIONER
5-IDLER |
 |
| CY-HYD006-A |
STAREX CTAPEKC D4CB H-1 (MINI BUS 2001-)
H200 205CRDI DIESEL 103KW 140HP 2003-
KIA SORENTO (JC) 2.5 CRDi D4CB DIESEL 103KW 140HP 2002
KIA SORENTO (JC) 2.5 CRDi D4CB DIESEL 120KW 163HP 2006 |
1-CHAIN 06Dx98L(布斯打洞)
2-CHAIN 06Dx90L(布斯打洞)
3-CHAIN 05Sx80L
4-TENSIONER
5-TENSIONER
6-TENSIONER
7-GUIDE
8-GUIDE
9-GUIDE
10-GUIDE
11-GUIDE
12-GUIDE
13-CAM GEAR |
 |

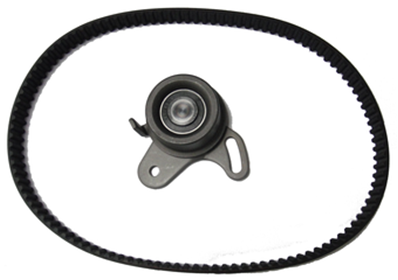

| CY-HYD010 |
ACCENT 1.3I 12V G4DA G4EA 2000- GETZ |
1-TIMING BELT 110S8M22
2-TENSIONER |
 |

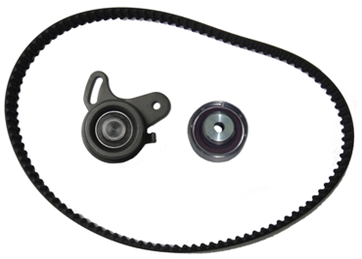

| CY-HYD011-A |
ACCENT 1.5I 16V G4ER 1996-2000 |
1-TIMING BELT 105RU22
2-IDLER
3-TENSIONER |
 |

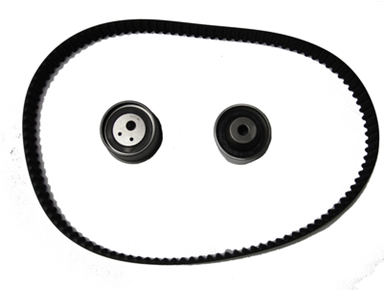

| CY-HYD012 |
LANTRA 1.6I 1.8I 16V G4DM G4GM 1995-
MATRIX 1.6I 1.8I 16V 2001- |
1-TIMING BELT 111RU25
2-TENSIONER
3-IDLER |
|
| CY-HYD013 |
ATOS 1.0 G4AC G4HCE 1998-2002
ATOS 1.1 G4HG 2004-2008
|
1-TIMING BELT 101MY20
2-TENSIONER |
|
| CY-HYD019 |
SONATA NF 2004- , GENESIS COUPE 2008-2013
SONATA 2006-2012 , TUCSON 2009-2013
G4KD 2.0L , G4KE 2.4L , KIA K5 2006-2010
FORTE 2010-2012 , OPTIMA 2006-2011
RONDO 2007-2010 , SORENTO 2011-2012 |
1-CHAIN BWA4x5x180L
2-CHAIN-OIL PUMP BWA4x5x74L
3-CAM GEAR
4-CRANK GEAR
5-TENSIONER
6-GUIDE LEFT
7-GUIDE RIGHT
8-TENSIONER-OIL PUMP
9-GUIDE-OIL PUMP LEFT
10-GUIDE-OIL PUMP RIGHT |
 |
| CY-HYD020 |
SONATA NF 2004- , GENESIS COUPE 2008-2013
SONATA 2006-2012 , TUCSON 2009-2013
G4KD 2.0L , G4KE 2.4L , KIA K5 2006-2010
FORTE 2010-2012 , OPTIMA 2006-2011
RONDO 2007-2010 , SORENTO 2011-2012 |
1-CHAIN BWA4x5x178L (2PCS)
2-CHAIN-OIL PUMP BWA 4x5x72L
3-CAM GEAR (2PCS)
4-CRANK GEAR
5-GEAR OIL PUMP UPPER
6-GEAR OIL PUMP DOWN
7-TENSIONER (2PCS)
8-GUIDE LEFT (2PCS)
9-GUIDE RIGHT (2PCS)
10-GUIDE-UP (2PCS)
11-GUIDE-OIL PUMP LEFT
12-GUIDE-OIL PUMP RIGHT |
 |

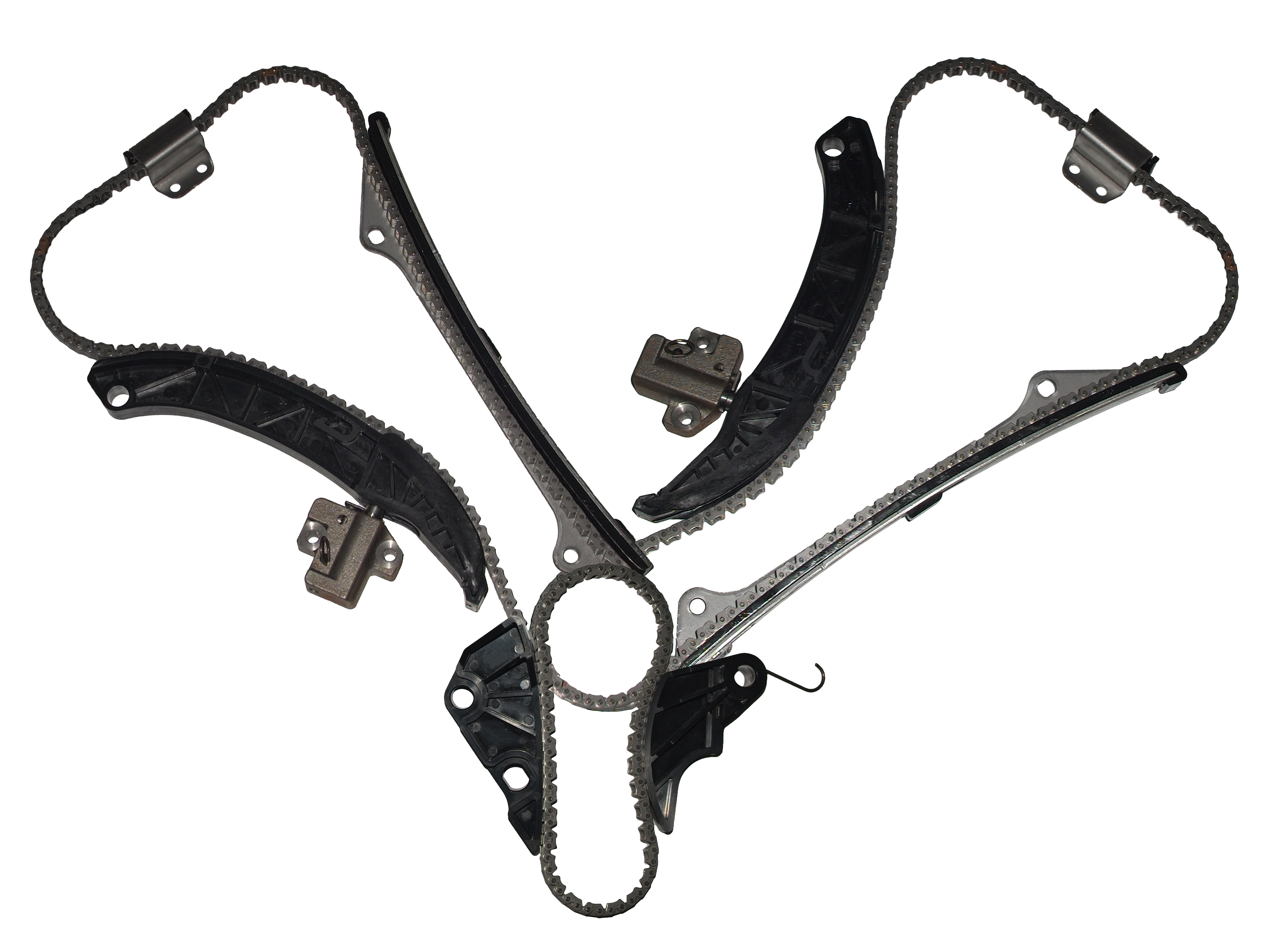

| CY-HYD020-1 |
SONATA NF 2004- , GENESIS COUPE 2008-2013
SONATA 2006-2012 , TUCSON 2009-2013
G4KD 2.0L , G4KE 2.4L , KIA K5 2006-2010
FORTE 2010-2012 , OPTIMA 2006-2011
RONDO 2007-2010 , SORENTO 2011-2012 |
1-CHAIN BWA4x5x178L X2PCS
2-CHAIN-OIL PUMP BWA 4x5x72L
3-CRANK GEAR
4-GEAR OIL PUMP UPPER
5-GEAR OIL PUMP DOWN
6-TENSIONER X2PCS
7-GUIDE LEFT X2PCS
8-GUIDE RIGHT X2PCS
9-GUIDE-UP X2PCS
10-GUIDE-OIL PUMP LEFT
11-GUIDE-OIL PUMP RIGHT |
 |
| CY-HYD021 |
ELANTRA/LANTRA/COUPE 1996-2000 TIBURON 2001
4G61. G4ELG. G4GCG.G4GM.G4BB.G4BG.
G4GF.G4GR KIA G4GC |
1-TIMING BELT 111RU25
2-TENSIONER
3-IDLER
4-CHAIN 06BHx46L
5-GUIDE
6-GUIDE |
|
| CY-HYD022 |
4G64.MOTOR 2.4L |
1-CHAIN BWA4x5x180L
2-CHAIN-OIL PUMP BWA4x5x76L
3-TENSIONER
4-GUIDE LEFT
5-GUIDE RIGHT
6-TENSIONER-OIL PUMP
7-GUIDE-OIL PUMP LEFT |
 |
| CY-HYD024 |
2.0 (1975CC) DOHC 4 CYL. (G4CP ENGINE) ELANTRA, TIBURON 1997-2006
G4GF 2.0(1975CC) 4 Cyl. SPECTRA, SPORTAGE 2004-2006 |
1-BELT TB284 113RU25.4
2-TENSIONER
3-IDLER |
|

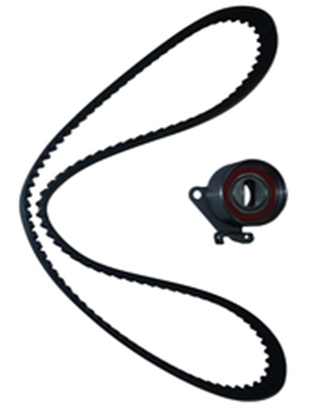

| CY-HYD025 |
HYDUNDAI SONATA 3.0L V6 SOHC G6AT 1990-1998 |
1-TIMING BELT TB-139 149
2-TENSIONER 9195 |
 |
| CY-HYD026 |
"D4CB 2.5 CRDi
H-1 Starex DOHC 16V 2.5 CRDi 02-07
H-1 Box DOHC 16V 2.5 CRDi 01-04
H-1 Flatbed / Chassis 2.5 CRDi 02-05
H-1 Cargo (TQ) 2.5 CRDi 08-
H-1 Travel (TQ) 2.5 CRDi 08-
Porter Kasten/Pick-up 2.5 CRDi 03-04" |
1-TIMING CHAIN X3 PCS
2-GEAR X4 PCS
3-TENSIONER X3 PCS
4-GUIDE X7 PCS
5-OIL SEAL |
 |
| CY-HYD027 |
2.0L G4GC, F, M 4cyl 03-06
CAR VEHICLE: Elantra 03-06, Tiburon 03-06
Elantra KIA CERATO 16V 1.6L G4ED 07- |
1-TIMING CHAIN
2-SPROCKET
3-CAM PHASER(VVT)
4-TENSIONER |
 |
| CY-HYD028 |
2.0L G4GC 4 cyl 07-10
Elantra 07-10, Tiburon 07-08
Tucson (2008-09) i30 1.6L |
1-TIMING CHAIN
2-SPROCKET
3-CAM PHASER(VVT)
4-TENSIONER |
 |
| CY-HYD029 |
G4FA/G4FC
KIA ELANTRA RAINER 1.6L 09- |
1-TIMING CHAIN
2-CAM SPROCKET
3-CRANK SPROCKET
4-TENSIONER
5-GUIDEX2 PCS |
 |
| CY-HYD030 |
G4FA/G4FC
KIA ELANTRA RAINER 1.6L 09- |
1-TIMING CHAIN
2-CAM SPROCKET
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X2 PCS |
 |
| CY-HYD031 |
KIA ELANTRA RAINER y 1.6L 2012- |
1-TIMING CHAIN
2-CAM SPROCKET
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X2 PCS |
 |
| CY-HYD032 |
KIA ELANTRA RAINER y 1.6L 2012- |
1-TIMING CHAIN
2-CAM PHASER(VVT)
3-CAM SPROCKET
4-CRANK SPROCKET
5-TENSIONER
6-GUIDE X2 PCS |
 |
| CY-HYD033 |
G4KD 2.0L G4KE 2.4L
NF,NFC, KIA K5,06-10 |
1-TIMING CHAIN
2-CAM PHASER(VVT)
3-CAM SPROCKET
4-CRANK SPROCKET
5-TENSIONER
6-GUIDE X2 PCS |
 |
| CY-HYD034 |
G4KD 2.0L G4KE 2.4L
CAR VEHICLE: NF,NFC, KIA K5,06-10
SONATA NF 2004- ED3 06-07
SONATA 06-12 SORENTO 11-12
GENESIS COUPE 2008-2016
TUCSON 09-13 FORTE 10-12
OPTIMA 06-11 RONDO 07-10 IX35 2.4L |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X2 PCS |
 |

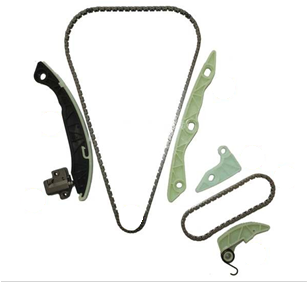

| CY-HYD035 |
HYUNDAI ix35 (LM EL ELH) 2.0/2.0 4WD
HYUNDAI ix35 (LM EL ELH) 2.4 DCVVT-I 4WD
HYUNDAI SANTA FÉ II (CM) 2.4
HYUNDAI SONATA V (NF) 2.0 GLSI/2.0 VVTi GLS
HYUNDAI SONATA VI (YF) 2.0 i
KIA MAGENTIS (MG) 2.0
KIA OPTIMA 2.0
KIA SORENTO II (XM) 2.4 CVVT/2.4 CVVT 4WD
KIA SPORTAGE (SL) 2.0 CVVT /AWD |
1-TIMING CHAIN (180L+76L) X2 PCS
2-VVT GEARS X2 PCS
3-TENSIONER
4-GUIDE X4 PCS |
 |
| CY-HYD036 |
Genesis Coupe 2.0L 1998CC 122Cu. In. l4 GAS DOHC Turbo
Coupe/Premium Coupe/R-Spec Coupe 2-Door 2.0T 2012-2013
GT Coupe 2-Door 2.0T 2012
Genesis Coupe 2.0L 1998CC 2010-2012
Premium/R-Spec/Tucson/Hybrid 2011-2013 |
1-TIMING CHAIN (180L+76L) X2 PCS
2-CRANK SPROCKET (27T)
3-TENSIONER
4-GUIDE X4 PCS |
 |
| CY-HYD037 |
HB20 CRDI 16V 2.0L diesel
D4EA |
1-TIMING CHAIN X2 PCS
2-TENSIONER X2 PCS
3-GUIDE X4 PCS |
 |
| CY-HYD038 |
HB20 CRDI 16V 2.0L diesel
D4EA |
1-TIMING CHAIN X2 PCS
2-SPROCKET X2 PCS
3-TENSIONER X2 PCS
4-GUIDE X4 PCS |
 |
| CY-HYD039 |
G4NA NU 2.0 (2E010)
ELANTRA LIMITED 1.8L L4-GAS 2011-2014
ELANTRA GLS 1.8L L4-GAS 2011-2014
ELANTRA COUPE GS/SE/GT BASE 1.8L L4-GAS 2013-2015
ELANTRA SE 1.8L L4-GAS 2014
ELANTRA Sport Sedan/Limited Sedan 2.0L L4-GAS 2014-2015
ELANTRA Coupe/GT 2.0L L4-GAS 2014-2015
Tucson 2.0L L4-GAS 2014-2015
MISTRA 1.8L L4-GAS 2013-2016
Sonata VIII 2.0L 2013-2015 |
1-TIMING CHAIN
2-TENSIONER
3-GUIDE X2 PCS |
 |
| CY-HYD040 |
G4NA NU 2.0 (2E010)
ELANTRA LIMITED 1.8L L4-GAS 2011-2014
ELANTRA GLS 1.8L L4-GAS 2011-2014
ELANTRA COUPE GS/SE/GT BASE 1.8L L4-GAS 2013-2015
ELANTRA SE 1.8L L4-GAS 2014
ELANTRA Sport Sedan/Limited Sedan 2.0L L4-GAS 2014-2015
ELANTRA Coupe/GT 2.0L L4-GAS 2014-2015
Tucson 2.0L L4-GAS 2014-2015
MISTRA 1.8L L4-GAS 2013-2016
Sonata VIII 2.0L 2013-2015 |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-TENSIONER
4-GUIDE X2 PCS |
 |
| CY-HYD041 |
NU 1.8/2.0 (2E000)
Elantra Limited L4 1.8L GAS 2012-
I40 L4 2.0L GAS 2011-
Sonata 2.0L GAS 10-14 |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-TENSIONER
4-GUIDE X2 PCS |
|
| CY-HYD042 |
ATOS 1999 1.0 12V GLS PRIME 4P
ATOS 2000 1.0 12V GL 4P | 1.0 12V GLS PRIME 4P
ATOS 2001 1.0 12V GL 4P | 1.0 12V GLS 4P | 1.0
12V GLS PRIME 4P
ATOS 2002 1.0 12V GLS PRIME 4P
ATOS 2003 1.0 12V GLS PRIME 4P
HB20 2013 1.0 12V COMFORT 4P | 1.0 12V
COMFORT PLUS 4P | 1.0 12V COMFORT STYLE 4P
HB20 2014 1.0 12V COMFORT 4P | 1.0 12V
COMFORT PLUS 4P | 1.0 12V COMFORT STYLE 4P
KIA PICANTO 2006-2014 1.0 12V EX 4P |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-TENSIONER
4-GUIDE X2 PCS |
|
| CY-HYD042-1 |
ATOS 1999 1.0 12V GLS PRIME 4P
ATOS 2000 1.0 12V GL 4P | 1.0 12V GLS PRIME 4P
ATOS 2001 1.0 12V GL 4P | 1.0 12V GLS 4P | 1.0
12V GLS PRIME 4P
ATOS 2002 1.0 12V GLS PRIME 4P
ATOS 2003 1.0 12V GLS PRIME 4P
HB20 2013 1.0 12V COMFORT 4P | 1.0 12V
COMFORT PLUS 4P | 1.0 12V COMFORT STYLE 4P
HB20 2014 1.0 12V COMFORT 4P | 1.0 12V
COMFORT PLUS 4P | 1.0 12V COMFORT STYLE 4P
KIA PICANTO 2006-2014 1.0 12V EX 4P |
1-TIMING CHAIN
2-TENSIONER
3-GUIDE X2 PCS |
 |

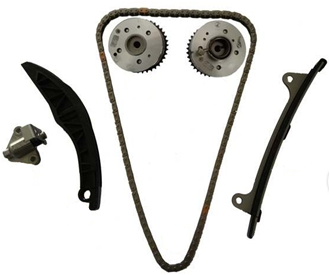

| CY-HYD043 |
Hyundai G4KD
HYUNDAI ix35 (LM EL ELH) 2.0
HYUNDAI ix35 (LM EL ELH) 2.4 DCVVT-I 4WD T
HYUNDAI SANTA FÉ II (CM) 2.4
HYUNDAI SONATA V (NF) 2.0 GLSI
HYUNDAI SONATA V (NF) 2.4
HYUNDAI SONATA V (NF) 2.0 VVTi GLS
HYUNDAI SONATA VI (YF) 2.0 i |
1-TIMING CHAIN
2-TENSIONER
3-GUIDE X3 PCS |
 |
| CY-HYD044 |
Hyundai G4KD
HYUNDAI ix35 (LM EL ELH) 2.0
HYUNDAI ix35 (LM EL ELH) 2.4 DCVVT-I 4WD T
HYUNDAI SANTA FÉ II (CM) 2.4
HYUNDAI SONATA V (NF) 2.0 GLSI
HYUNDAI SONATA V (NF) 2.4
HYUNDAI SONATA V (NF) 2.0 VVTi GLS
HYUNDAI SONATA VI (YF) 2.0 i |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-TENSIONER
4-GUIDE X3 PCS |
 |
| CY-HYD045 |
Hyundai G4LA
HYUNDAI i10 (IA) 1.2 13-16
HYUNDAI i10 (PA) 1.2 08-13
HYUNDAI i20 (GB) 1.2 14-16
HYUNDAI i20 (PB PBT) 1.2 08-15 |
1-TIMING CHAIN
2-CRANK SPROCKET
3-TENSIONER
4-GUIDE X4 PCS |
 |
| CY-HYD046 |
Hyundai G4LA
HYUNDAI i10 (IA) 1.2 13-16
HYUNDAI i10 (PA) 1.2 08-13
HYUNDAI i20 (GB) 1.2 14-16
HYUNDAI i20 (PB PBT) 1.2 08-15 |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X4 PCS |
 |
| CY-HYD047 |
Hyundai G4LA
HYUNDAI i10 (IA) 1.2
HYUNDAI i10 (PA) 1.2
HYUNDAI i20 (GB) 1.2
HYUNDAI i20 (PB PBT) 1.2 |
1-TIMING CHAIN
2-CRANK SPROCKET
3-TENSIONER
4-GUIDE X4 PCS |
 |
| CY-HYD048 |
Hyundai G4LA
HYUNDAI i10 (IA) 1.2
HYUNDAI i10 (PA) 1.2
HYUNDAI i20 (GB) 1.2
HYUNDAI i20 (PB PBT) 1.2 |
1-TIMING CHAIN
2-CAM PHASER(VVT) X2 PCS
3-CRANK SPROCKET
4-TENSIONER
5-GUIDE X4 PCS |
 |
| CY-HYD049 |
HYUNDAI i10 (IA) 1.2 13-
HYUNDAI i10 (PA) 1.2 08-
HYUNDAI i20 (GB) 1.2 14-
HYUNDAI i20 (PB PBT) 1.2 08- |
1-TIMING CHAIN
2-SPROCKET X3 PCS
3-TENSIONER
4-GUIDE X4 PCS |
 |
| CY-HYD050 |
Accent GL/GS/GLS/L/SE 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2014
Veloster Base/SE/TECH 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2015
Veloster Turbo Hatchback 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Turbocharged 2013-2015 |
1-TIMING CHAIN
2-TENSIONER
3-GUIDE X2 PCS |
 |
| CY-HYD051 |
Accent GL/GS/GLS/L/SE 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2014
Veloster Base/SE/TECH 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2015
Veloster Turbo Hatchback 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Turbocharged 2013-2015 |
1-TIMING CHAIN
2-CRANK SPROCKET
3-TENSIONER
4-GUIDE X2 PCS |
|
| CY-HYD052 |
Accent GL/GS/GLS/L/SE 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2014
Veloster Base/SE/TECH 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Naturally Aspirated 2012-2015 |
1-TIMING CHAIN
2-VVT GEARS X2 PCS
3-TENSIONER
4-GUIDE X2 PCS |
 |
| CY-HYD053 |
Veloster Turbo Hatchback 1.6L 1591CC 97Cu. In. l4 GAS DOHC
Turbocharged 2013-2015 |
1-TIMING CHAIN
2-VVT GEARS X2 PCS
3-TENSIONER
4-GUIDE X2 PCS |
|
| CY-HYD054 |
Sonata 2.0T GAS DOHC 2014-2015
Sonata 2.4L GAS DOHC 2014-2015
Santa Fe 2.0T GAS DOHC 2014
Santa Fe 2.4L GAS DOHC 2014
Tucson 2.4L GAS DOHC 2015 |
1-TIMING CHAIN X2 PCS
2-SPROCKET X2 PCS
3-TENSIONER X2 PCS
4-GUIDE X4 PCS |
 |
| CY-HYD055 |
Sonata 2.0T GAS DOHC 2014-2015
Sonata 2.4L GAS DOHC 2014-2015
Santa Fe 2.0T GAS DOHC 2014
Santa Fe 2.4L GAS DOHC 2014
Tucson 2.4L GAS DOHC 2015 |
1-TIMING CHAIN X2 PCS
2-VVT SPROCKET X2 PCS
3-SPROCKET X2 PCS
4-TENSIONER X2 PCS
5-GUIDE X4 PCS |
 |
| CY-HYD056 |
HYUNDAI ix35 (LM EL ELH) 2.0/2.0 4WD
HYUNDAI ix35 (LM EL ELH) 2.4 DCVVT-I 4WD
HYUNDAI SANTA FÉ II (CM) 2.4
HYUNDAI SONATA V (NF) 2.0 GLSI/2.0 VVTi GLS
HYUNDAI SONATA VI (YF) 2.0 i
KIA MAGENTIS (MG) 2.0
KIA OPTIMA 2.0
KIA SORENTO II (XM) 2.4 CVVT/2.4 CVVT 4WD
KIA SPORTAGE (SL) 2.0 CVVT /AWD |
1-TIMING CHAIN X2 PCS
2-TENSIONER
3-GUIDE X4 PCS |
 |
| CY-HYD057 |
D4FA 1.1/1.4/1.5/1.6 CRDi
Accent III MC 1.5 CRDi GLS 05-10
Getz TB 1.5 CRDi 03-09
i10 PA 1.1 CRDi 08-11
i20 PB, PBT 1.1 CRDi 12-16 / 1.4 CRDi 09-16 / 1.6 CRDi 08-16
i30 FD/GD 1.6 CRDi 07-11
i30 CW FD 1.6 CRDi 08-12 / i30 CW GD 1.6 CRDi 12-17
Matrix FC 1.5 CRDi 01-10 |
1-TIMING CHAIN X2 PCS
2-SPROCKET X4 PCS
3-TENSIONER X2 PCS
4-GUIDE X4 PCS
5-OIL SEAL X1 PCS |
 |
